Product Features
Seamless Sound Amplification
Liberates presenters from physical constraints, enabling unrestricted movement and spontaneous presentations without preparatory complexities.
One-Touch Mode Switching
Integrates long-range pickup, local amplification, and remote interaction. Includes infrared remote control for instant switching between remote collaboration and local amplification modes.
Core Audio Processing Technology
Employs deep learning noise reduction and intelligent echo cancellation, with features like smart denoising, ultra-low latency, and automatic gain control to ensure clarity in noisy environments.
Plug-and-Play
Equipped with USB 2.0 and 3.5mm audio interfaces for instant digital/analog dual-mode connectivity, eliminating the need for professional audio tuning.
Flexible Power Supply
Supports USB or PoE (Power over Ethernet) for adaptable deployment in diverse environments.
DATASHEET
Model: ED660
Name: Digital Array Microphone with Seamless Sound Reinforcement
Audio Parameters
Microphone Type: Digital Array Microphone
Microphone array: Built-in 9 MEMS to form a circular array microphone
Pickup Distance: 8-meter clear sound pickup, 3-meter seamless audio amplification
Sensitivity: -38dBFS
Signal Noise Ratio: 65dB@1KHz at 1Pa
Frequency Response: 20Hz -8KHz
Sampling Rate: 48KHz sampling for sound pickup, 16KHz sampling for seamless amplification
USB Protocol Support: UAC
Automatic Echo Cancellation (AEC): Support
Automatic Noise Suppression (ANS): Support
Automatic Gain Control (AGC): Support
Reverberation suppression: Support

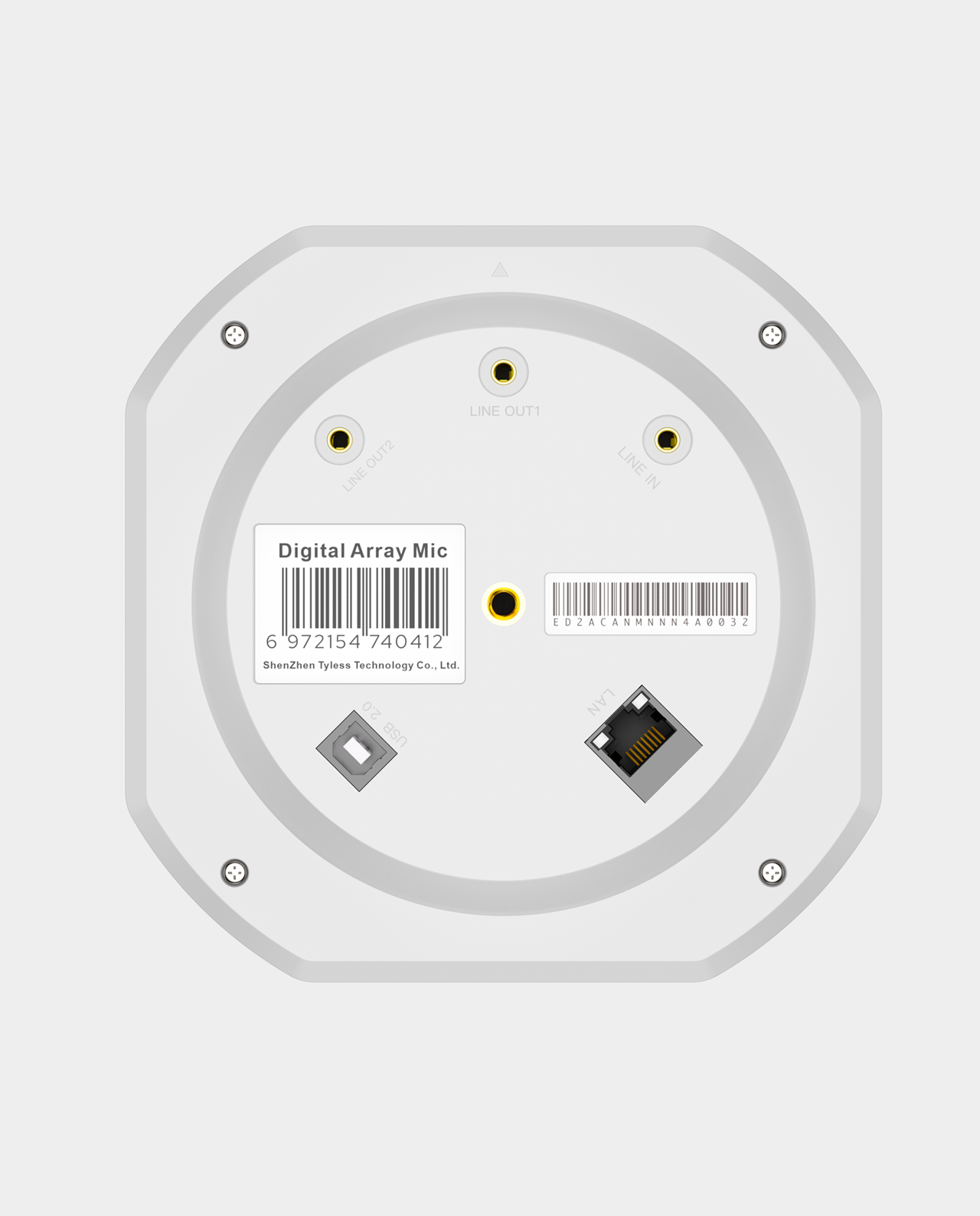

Hardware Interfaces
Audio Input: 1 x 3.5mm line in
Audio Output: 2 x 3.5mm line out
Line Out 1: Analog microphone signal output to a computer or recording host
Line Out 2: Connect to a power amplifier or active speakers
USB Interface: 1 x USB Type B audio interface, support UAC
Lan Interface: 1 x RJ45, Supports Power over Ethernet (PoE)
General Specifications
Power Input: USB DC 5V or PoE.
Power: Max 5W.
Dimensions: 150mm×150mm×27.4mm
Net Weight: 0.27KG
