Digital Array Microphone, Long Distance Voice Pickup
Digital array microphone, 8-meter distance voice pickup. A hands-free lecture and presentation solution.
Intelligent Voice Tracking
Adaptive blind beamforming technology provides adaptability to different sound environments. With speech reinforcement, the microphone minimizes interference and keeps speech clear.
Multiple Audio Algorithms, High Quality of Sound
Using proprietary technologies including intelligent noise reduction, echo cancellation and reverberation suppression to ensure clear sound quality and comfortable communication. Less requirements of the classroom decoration. Supports full duplex communication.
Simply Installation, Plug and Play
Using standard USB2.0 and 3.5 mm audio interface, zero configuration design, plug and play. Simple system and compact appearance, easy to install and maintain. Supports dual-mode (digital, analog) output.
Tyless DAM700 8-Meter Distance Voice Pickup USB Plug and Play Digital Array Microphone
Digital Array Microphone, Long Distance Voice Pickup
Digital array microphone, 8-meter distance voice pickup. A hands-free lecture and presentation solution.
Intelligent Voice Tracking
Adaptive blind beamforming technology provides adaptability to different sound environments. With speech reinforcement, the microphone minimizes interference and keeps speech clear.
Multiple Audio Algorithms, High Quality of Sound
Using proprietary technologies including intelligent noise reduction, echo cancellation and reverberation suppression to ensure clear sound quality and comfortable communication. Less requirements of the classroom decoration. Supports full duplex communication.
Simply Installation, Plug and Play
Using standard USB2.0 and 3.5 mm audio interface, zero configuration design, plug and play. Simple system and compact appearance, easy to install and maintain. Supports dual-mode (digital, analog) output.
DATASHEET
Model: DAM700
Name: Digital Array Microphone
Audio Parameters
Microphone Type: Digital Array Microphone
Microphone array: Built-in 4 MEMS to form a circular array microphone
Pickup Distance: 8m
Sensitivity: -26dBFS
Signal Noise Ratio: 85dB@1KHz at 1Pa
Frequency Response: 20Hz -20kHz
Sampling Rate:16KHZ /24bit
USB Protocol Support: UAC
Automatic Echo Cancellation (AEC): Support
Automatic Noise Suppression (ANS): Support
Automatic GainControl (AGC): Support
Reverberation suppression: Support

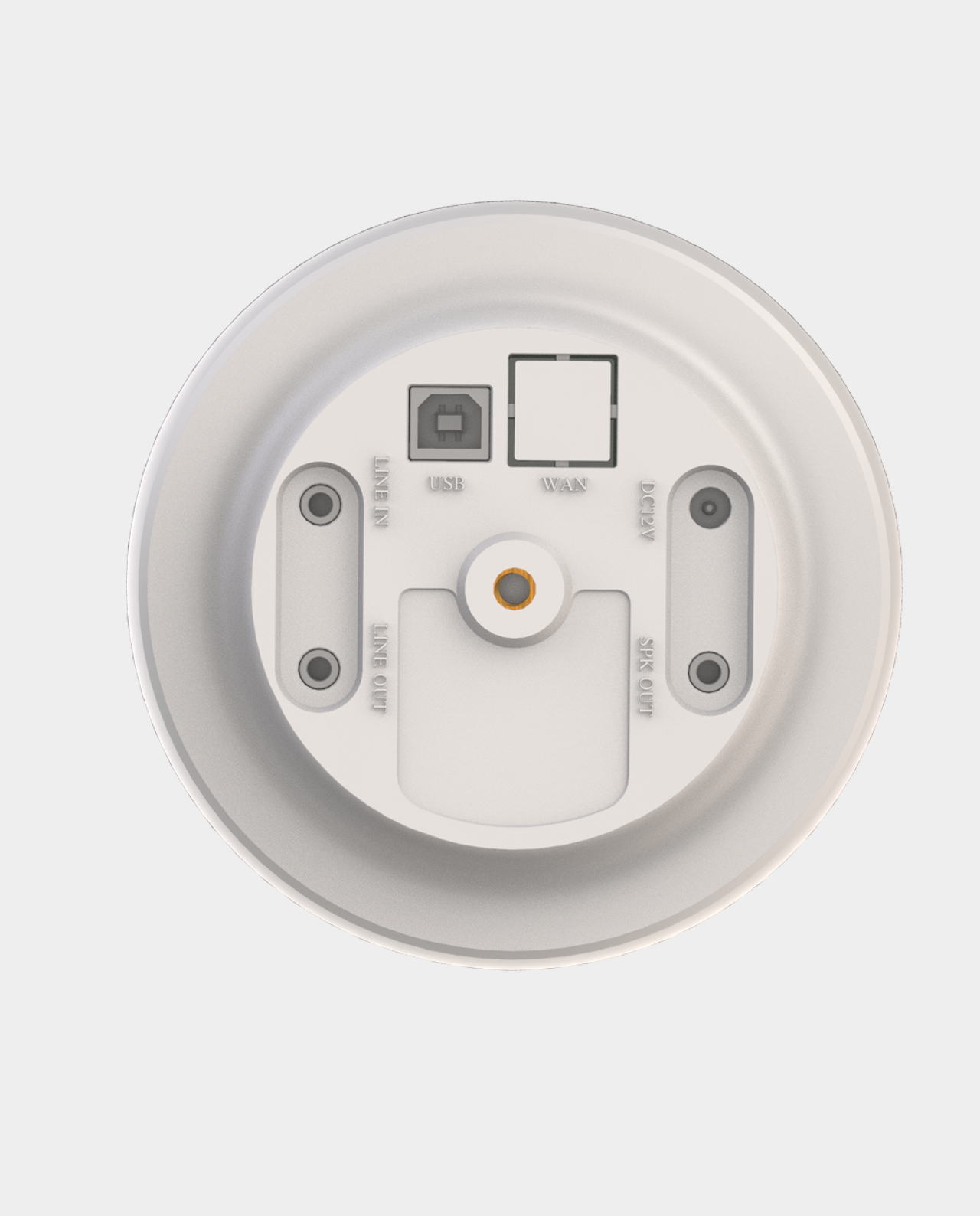

Hardware Interfaces
Audio Input: 1 x 3.5mm line in
Audio Output: 1 x 3.5mm line out, 1 x 3.5mm speaker out
USB Interface: 1 x USB Type B audio interface
General Specifications
Power Input: 5V/500mA
Dimensions: Φ 135mm x H36mm
Net Weight: 0.9KG
